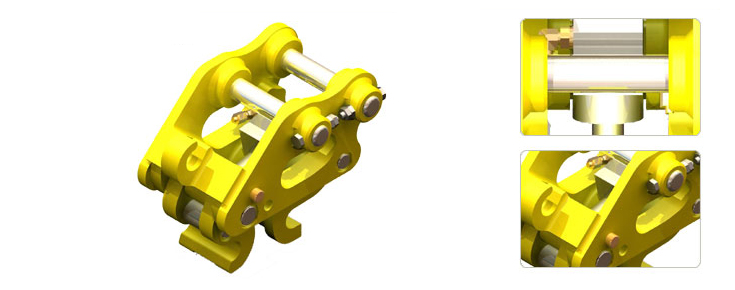

Quick-coupler(Maker)
| ITEM | Unit | 1 ~ 2 ton |
|---|---|---|
| Overall Length(L) | mm | 306 ~ 307 |
| Overall Height(H) | mm | 230 ~ 240 |
| Overall Width(W) | mm | 184 ~ 192 |
| Installation Length(L1) | mm | 85 ~ 101 |
| Mounting Length(L2) | mm | 85 ~ 101 |
| Height Between Axeles(H1) | mm | 159 ~ 167 |
| Installation Width(W1) | mm | 95 ~ 100 |
| Pin Diameter(Φ) | mm | 25 ~ 30 |
Application Model |
AX10U-3, AX15-3 |
|
