Products Bucket - 0.8~1.5ton

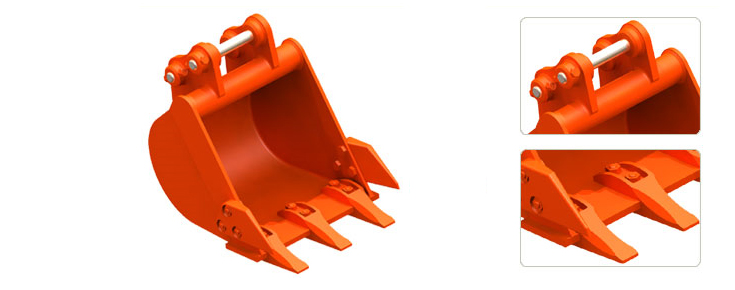

Bucket
| ITEM | Unit | 0.8 ~ 1.5 ton |
|||
|---|---|---|---|---|---|
| WIDE | STD | NARR | |||
| Overall Length(L) | mm | 553 ~ 581 |
|||
| Overall Height(H) | mm | 371 |
|||
| Overall Width(W) | mm | 780 |
376 ~ 440 |
244 | |
Installation Length(L1) |
mm | 90 ~ 100 |
|||
Installation Width(W1) |
mm | 100 ~ 118 |
|||
Application Model |
SOLAR015, EC15, VI010-2, AX10U-3, AX15-3 SK09SR, 13SR, A5SR, EX20U-3, EX08, ZX10U-2, ZX17U-2, ZX17U-2, 9NX2, 15NX2 TB016, TB108 |
||||

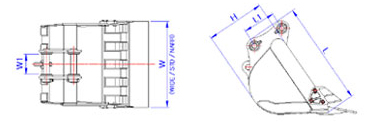

| Reference DWG. |  |
||||
| Attachment | Ordinary positon |  |
|||
| Back positon |  |
||||
