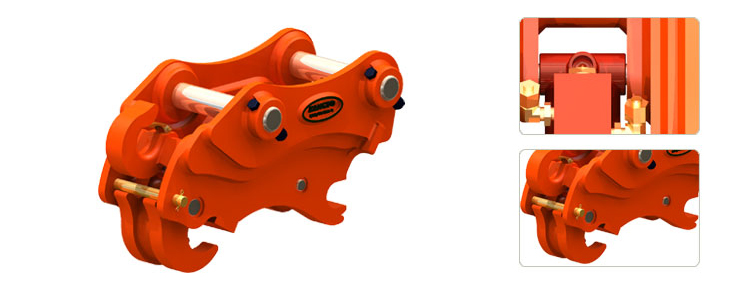

Quick-coupler(KT Series)
| ITEM | Unit | KT200 | Application Model |
|---|---|---|---|
| Overall Length(L) | mm | 300 | SOLAR 015, SOLAR 030, EC15, ECR 38 ROBEX 35-7, ZX10U-2, ZX17U, ZX22U-2, ZX30U-2, ZX35U-2, TB108, TB28FR, EX20U, SK09SR, SK13SR, SK15SR, SK20SR, SK30SR, 9NX2, 15NX2, 20NX2 |
| Overall Height(H) | mm | 240 | |
| Overall Width(W) | mm | 194 | |
| Installation Length(L1) | mm | 85~285 | |
| Mounting Length(L2) | mm | 85~245 | |
| Height Between Axeles(H1) | mm | 172~190 | |
| Installation Width(W1) | mm | 100~172 | |
| Pin Diameter(Φ) | mm | 24~45 | |

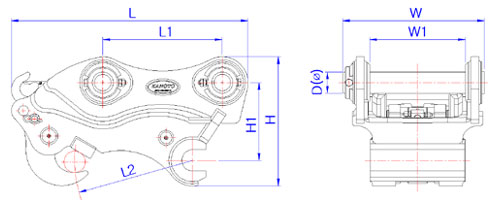

| Reference DWG. |  |
||
