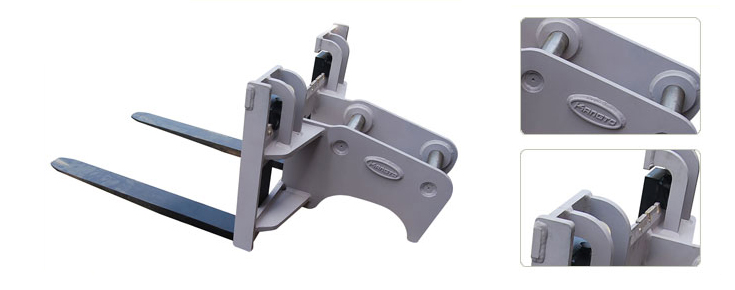

Products Fork-lift
Fork-lift
| ITEM | Unit | KTFL 600 |
|---|---|---|
Application Capa. |
ton | 11.0 ~ 14.0 |
Overall Height (H) |
mm | 690 ~ 700 |
Overall Length (L) |
mm |
1800 ~ 1850 |
Mounting Distance (L1) |
mm | 380 ~ 408 |
Overall Width (W) |
mm | 1050 ~ 1060 |
Arm Width (W1) |
mm | 251 ~ 280 |
Foots Distance (W2) |
mm | 1006 |
Foot Width (W3) |
mm | 120 |
| * Fork - Doosan 3 of Dozer Operating in vertical direction through crance attachment. |
||

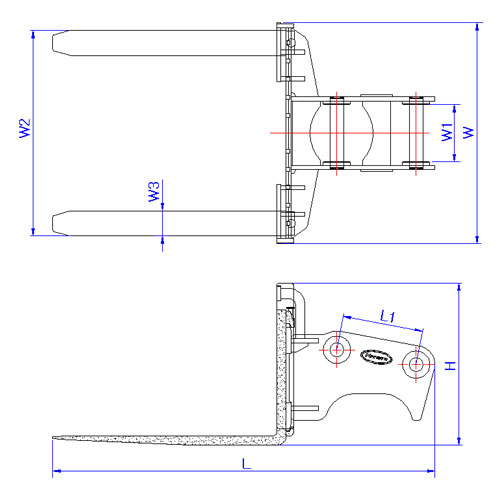

| Reference DWG. |  |
|
