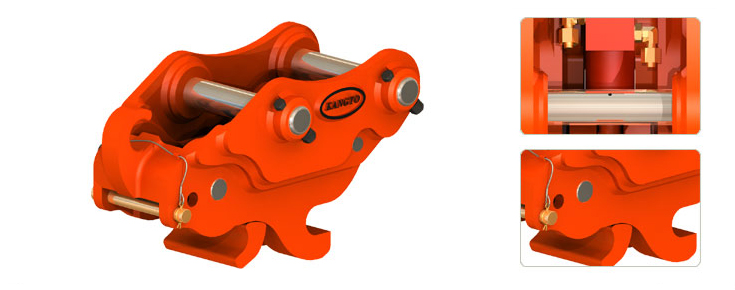

Quick-coupler(KTP Series) - KTP200

Quick-coupler(KTP Series)

ITEM	Unit	KTP200	Application Model
Overall Length(L)	mm	340 ~ 475	SOLAR 015, SOLAR 030, EC15, ECR 38 ROBEX 35-7, ZX10U-2, ZX17U, ZX22U-2, ZX30U-2, ZX35U-2, TB108, TB28FR, EX20U, SK09SR, SK13SR, SK15SR, SK20SR, SK30SR, 9NX2, 15NX2, 20NX2
Overall Height(H)	mm	235 ~ 270
Overall Width(W)	mm	200 ~ 235
Installation Length(L1)	mm	85 ~ 285
Mounting Length(L2)	mm	85 ~ 245
Height Between Axeles(H1)	mm	160 ~ 170
Installation Width(W1)	mm	100 ~ 150
Pin Diameter(Φ)	mm	25 ~ 45

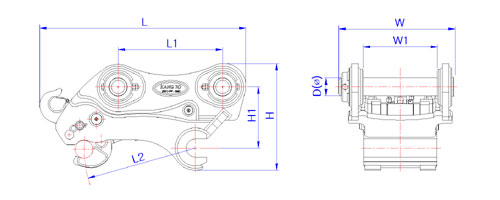

Reference DWG.
