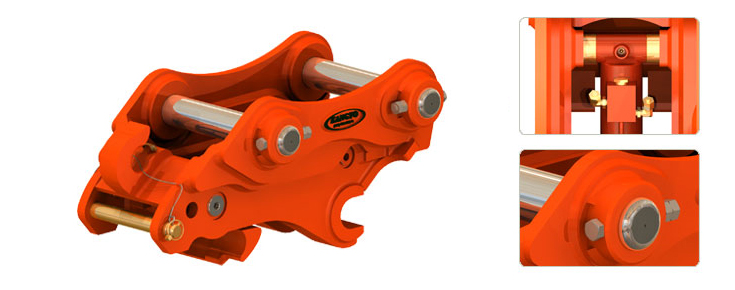

Quick-coupler(KTP Series) - KTP600

Quick-coupler(KTP Series)

ITEM	Unit	KTP600	Application Model
Overall Length(L)	mm	785 ~ 796	SOLAR 130W, SOLAR 130W-3, SOLAR 130W-V, SOLAR 140W-V, DX140W-V, EC130, EC140BLC, EC145, MX6W, MX132W, MX132LC, MX135W, MX6LC, ROBEX1300W, ROBEX1400LC-7 CAT312 DH05W HE130W
Overall Height(H)	mm	382 ~ 396
Overall Width(W)	mm	410 ~ 440
Installation Length(L1)	mm	380 ~ 460
Mounting Length(L2)	mm	380 ~ 460
Height Between Axeles(H1)	mm	231 ~ 214
Installation Width(W1)	mm	251 ~ 280
Pin Diameter(Φ)	mm	50 ~ 70
Reference DWG.
