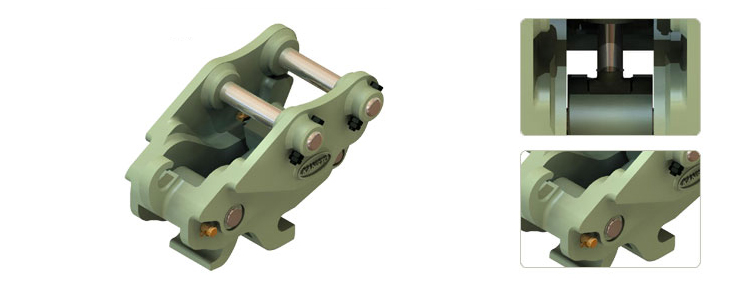

Quick-coupler(Maker)

ITEM	Unit	0.8 ~ 1.7 ton	2 ton	4 ~ 5 ton
Overall Length(L)	mm	306.5	401	529.7
Overall Height(H)	mm	130 ~ 240.8	272	292
Overall Width(W)	mm	191 ~ 204	226	264
Installation Length(L1)	mm	90 ~ 121	180	234
Mounting Length(L2)	mm	90 ~ 121	180 (170 ~ 250)	230 (220 ~ 270)
Height Between Axeles(H1)	mm	159 ~ 167	185	180
Installation Width(W1)	mm	106	122	150
Pin Diameter(Φ)	mm	25 ~ 30	35	45
Application Model		TB108, TB016	TB23B, TB28FR	TB145, TB153FR

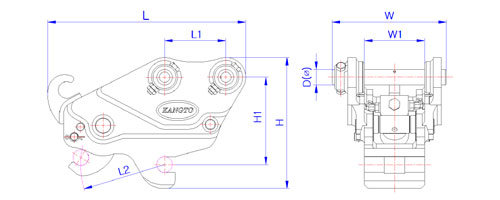

Reference DWG.
